Through-the-Wall ATM Installation: A Planning Guide
A through-the-wall ATM sits in a wall opening: customers use the front from one side, the operator services it from the rear. It fits exterior walls, vestibules, kiosks, retail centers, convenience stores, and any site where customer access and cash handling need to stay separate.
Most buyers underestimate the planning. A through-the-wall ATM can involve wall work, rear access, electrical work, a data connection, ADA review, weather protection, security planning, freight planning, and permit approval before it goes in.
Still comparing formats? See wall-mounted vs floor-standing ATMs. Ready to look at hardware? Check ATM machines, the Genmega GT3000, Genmega GT5000, and Genmega Onyx-W.
What is a through-the-wall ATM?
A through-the-wall ATM sits in a wall opening with the customer-facing side outdoors or in a public area, and the service side behind the wall. The rear is used for cash loading, receipt paper changes, repairs, and service access.
This setup suits operators who want customer access without exposing the service area. It shows up most in exterior walls, vestibules, kiosks, retail centers, convenience stores, and controlled-access service rooms.
A true through-the-wall ATM is not a standard lobby ATM. It needs a suitable wall, secure rear access, proper mounting, power, communication, and site planning. If you are still deciding between formats, ATMTrader's best ATM models by business type guide can help narrow it down.
Is a through-the-wall ATM the same as a wall-mounted ATM?
No. They are different installation types.
A through-the-wall ATM sits inside a wall opening and is usually serviced from behind the wall. A wall-mounted ATM attaches to a wall surface or sits in a compact area where floor space is limited.
The difference matters for cost. A wall-mounted ATM may only need mounting, power, and a connection. A through-the-wall ATM can need construction, wall cutting, framing, weather planning, rear access, permits, and ADA review. For the broader comparison, read ATMTrader's wall-mounted vs floor-standing ATM guide.
Is the Genmega Onyx-W a through-the-wall ATM?
No. The Genmega Onyx-W is a compact wall-mounted or countertop ATM, not a full through-the-wall machine.
That distinction matters because some buyers search "through the wall ATM" when what they actually need is a smaller wall-mounted unit for an indoor store, bar, club, convenience store, service counter, or protected vestibule. For that use case, the Onyx-W works well.
If the project needs a true wall opening with rear service access, look at the Genmega GT3000 or Genmega GT5000 instead.
How much does through-the-wall ATM installation cost?
It ranges widely. A simple replacement in an existing wall opening can run a few thousand dollars. A new exterior wall cutout with electrical work, data setup, framing, weather protection, permits, and security upgrades costs significantly more.
The machine price is separate from installation. Budget for the ATM, freight, contractor work, electrical work, communication setup, permits, signage, insurance review, and ongoing service. Check ATMTrader's ATM shipping information before estimating arrival, since freight timing affects the install schedule.
Replacements and indoor vestibule projects with existing rear access are the cheapest installs. Exterior walls with structural changes, new wiring, weather exposure, and stronger security cost the most.
What affects through-the-wall ATM installation cost the most?
Wall condition, construction scope, rear service access, electrical work, communication setup, weather exposure, permit requirements, and security upgrades drive the cost.
A site with an existing usable opening costs less than a new cutout and framing job. An indoor vestibule install is simpler than an exterior wall exposed to weather and foot traffic.
Machine choice matters too. The Genmega GT3000 suits compact projects, while the Genmega GT5000 fits higher-traffic sites that need more capacity and visibility.
What site requirements should I check before buying a through-the-wall ATM?
Confirm the wall location, rear access, customer approach, power, communication, lighting, security, weather exposure, ADA access, and local code requirements before buying.
The customer side needs to be easy to find, safe to use, and clear of blocked walkways. The rear side needs enough space for the operator to load cash, change receipt paper, and service the machine without working in a public area.
Not every wall works. Structural walls, glass storefronts, utility lines, narrow back rooms, and poor exterior exposure can make the project harder or rule it out entirely.
Does a through-the-wall ATM need rear access?
In most cases, yes. Cash loading, receipt paper changes, and service work are usually handled from behind the wall.
Rear access keeps cash handling away from customers and gives the operator a safer, more controlled service area.
If the site does not have a secure back room, office, or service corridor behind the wall, a through-the-wall ATM may not fit. A wall-mounted or floor-standing ATM is often easier to install. See ATMTrader's wall-mounted vs floor-standing ATM guide if rear access is not available.
What wall opening is needed for a through-the-wall ATM?
It depends on the model. Do not cut the wall until the model, dimensions, installation kit, rear access needs, and installer instructions are confirmed.
The opening has to fit the machine, support secure mounting, and leave enough service clearance behind the ATM. Poor measurements create gaps, leaks, access problems, or a machine that cannot be mounted correctly.
Confirm specifications with ATMTrader or a qualified installer before ordering. If the site is still flexible, compare options in the Genmega ATM collection before finalizing the cutout.
Does a through-the-wall ATM need a permit?
Often, yes. A permit may be required for wall modification, electrical work, exterior changes, signage, structural changes, or accessibility impact.
Rules vary by city, property type, and scope. A leased property usually needs written landlord approval before any wall is modified.
Check with the property owner, local building department, electrician, and installer before installation. Skipping this step can delay the project or force rework after the machine is already bought.
What ADA rules matter for a through-the-wall ATM?
Wall height, customer approach, clear floor space, reach range, keypad access, voice guidance, and path clearance all affect ADA compliance, and need checking before installation.
A compliant ATM can still create access problems if it is mounted too high, too low, too close to an obstruction, or in a blocked walkway. The surrounding space matters as much as the machine itself.
Confirm customers can approach and use the ATM safely before cutting the wall. If the layout makes that hard, revise the placement before buying.
What security planning does a through-the-wall ATM need?
Security planning covers both sides of the wall. The customer side should be visible, well-lit, and monitored. The rear service side should be locked, restricted, and protected during cash loading.
That covers cameras, lighting, anchoring, vault choice, alarm planning, cash handling procedures, password control, and staff access control.
Do not place the machine where customers feel exposed or where operators load cash in a public area. If the install needs added physical protection, see ATMTrader's ATM enclosures.
Does a through-the-wall ATM need weather protection?
If the customer-facing side is exposed to rain, sun, heat, cold, wind, dust, or moisture, yes.
Outdoor and semi-outdoor installs may need a canopy, overhang, protected vestibule, sealed opening, or weather-rated setup. Exposure affects the screen, keypad, card reader, receipt printer, and signage.
Confirm the machine and environment match the exposure level before buying. Poor weather planning turns into repeat service calls. For added protection, compare ATMTrader's ATM enclosures before finalizing the install.
What power and internet does a through-the-wall ATM need?
Reliable power and a stable connection, either Ethernet, modem, or wireless depending on the model and site.
Plan power and data before construction starts. Do not leave cords or exposed cables where customers can reach them.
If wired internet is not reliable, look at ATMTrader's wireless ATM options. Weak connectivity causes failed transactions, downtime, and lost surcharge revenue.
How does ATM processing work for a through-the-wall ATM?
Processing routes transactions, sets the surcharge amount, connects to the networks, and manages settlement.
Hardware and processing have to work together. A correctly installed machine can still fail to operate if it is not programmed, connected, and boarded properly.
ATMTrader is backed by NationalLink, so you can set up processing while planning the machine purchase. See ATMTrader's ATM processing page.
What revenue can I expect from a through-the-wall ATM?
It depends on transaction volume, surcharge amount, location demand, nearby ATM access, cash availability, uptime, and any revenue-sharing agreement.
A simple estimate: monthly surcharge revenue equals completed withdrawals multiplied by the surcharge amount. 300 withdrawals at $3.00 equals $900 in gross surcharge revenue, before processing terms, cash costs, service, insurance, and any location split.
High-traffic sites can do well, but only if the machine stays stocked, connected, and working. Downtime cuts straight into revenue. For transaction setup, settlement, and surcharge planning, start with ATMTrader's ATM processing page.
Is a through-the-wall ATM better than a floor-standing ATM?
A through-the-wall ATM works better when the site needs exterior access, rear service access, stronger separation between customers and cash loading, or a permanent wall-based install.
A floor-standing ATM works better for faster installation, easier relocation, lower construction complexity, or an indoor lobby setup.
It comes down to the location. For the full comparison, read ATMTrader's wall-mounted vs floor-standing ATM guide.
When should I choose a through-the-wall ATM instead of a wall-mounted ATM?
Choose through-the-wall when the machine serves customers from one side of a wall while being loaded and serviced from the back.
Choose wall-mounted when the site needs a compact machine but does not need a wall cutout or rear service room.
For compact wall-mounted or protected indoor setups, look at the Genmega Onyx-W. For true through-the-wall installs, look at the Genmega GT3000 and Genmega GT5000.
When should I choose the Genmega GT3000?
Choose the Genmega GT3000 for a compact TTW machine in a kiosk, convenience store, tight wall location, or smaller exterior-facing setup.
It is built for space-sensitive through-the-wall installs: a 7-inch display, 2-inch thermal printer, Ethernet and modem communication, vault options, LED signage, ADA features, and optional rear service access.
It is a practical fit when the site needs a true through-the-wall design without moving up to a larger machine. Compare it with other options in ATMTrader's Genmega ATM collection.

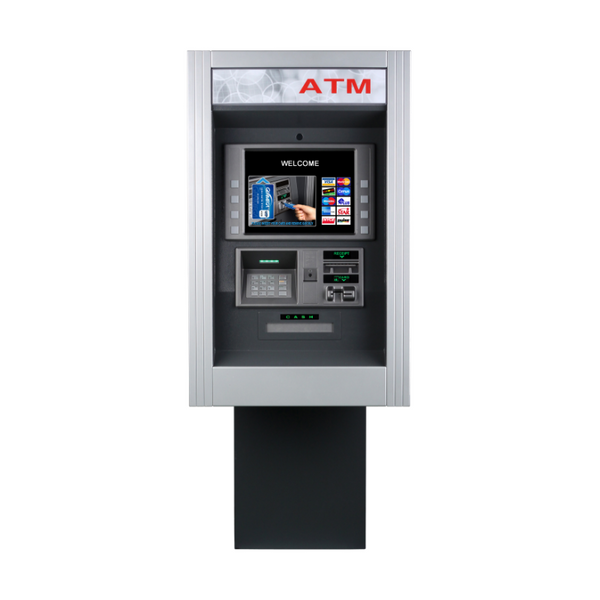

When should I choose the Genmega GT5000?
Choose the Genmega GT5000 when the location has higher transaction potential, stronger visibility needs, or a more demanding through-the-wall setup.
It has a larger 15-inch display, rear service access, TCP/IP Ethernet with SSL, optional modem support, a PCI/Interac certified EPP, and higher cassette capacity options.
It is the better fit when transaction volume, rear service convenience, display size, and capacity matter more than compact size. For more comparisons, see ATMTrader's best ATM models by business type guide.
When is the Genmega Onyx-W a better fit?
When the site needs a compact wall-mounted or countertop ATM rather than a true through-the-wall installation.
It works for indoor retail locations, bars, clubs, convenience stores, small shops, service counters, and protected vestibule-style placements where floor space is limited.
If the project does not need a wall cutout, rear service room, or exterior-facing service setup, the Genmega Onyx-W is simpler and cheaper than a full through-the-wall ATM.
What should I ask before ordering a through-the-wall ATM?
- Is the wall suitable for a through-the-wall installation?
- Is there secure rear access?
- Will the customer side be protected from weather?
- Does the site allow ADA-compliant customer access?
- Is power available at the planned location?
- Is Ethernet, modem, or wireless communication available?
- Does the city, landlord, or property manager require approval?
- What transaction volume is expected?
- Who will load cash?
- Who will handle service?
- Which ATM model fits the wall, traffic level, and security plan?
- Has shipping timing been checked against the installation schedule?
If these are not answered yet, do not order the machine. Planning comes before purchase. For freight timing, check ATMTrader's ATM shipping information before scheduling contractors.
What mistakes should I avoid with a through-the-wall ATM?
The biggest mistake is treating a through-the-wall ATM like a regular indoor retail ATM. TTW installs need more site planning, construction review, and access control.
Avoid cutting the wall before confirming dimensions, buying a machine without checking rear access, ignoring ADA reach and clearance, relying on weak internet, skipping permit review, and picking a model on price alone.
Also avoid forcing a through-the-wall install into a site that fits better with a wall-mounted or floor-standing ATM. Compare ATMTrader's ATM machines before finalizing the purchase.
What support will I need after installation?
Cash loading, receipt paper checks, transaction monitoring, connectivity support, cleaning, part replacement, and repair access.
Plan support before the machine goes live. In a high-traffic site, downtime cuts into revenue fast.
ATMTrader covers long-term operation through ATM support, ATM parts, the ATM Repair Center, ATM error codes, and ATM tutorials.
Where should I buy a through-the-wall ATM?
From a supplier that covers hardware, processing, parts, repair, and long-term support, not just the machine itself.
ATMTrader carries ATM machines, the Genmega ATM collection, the Genmega GT3000, the Genmega GT5000, and compact wall-mounted options like the Genmega Onyx-W, plus ATM processing, wireless ATM equipment, ATM parts, ATM enclosures, and the ATM Repair Center.
Before buying, confirm the site first. Wall access, rear service space, ADA clearance, power, data, permits, weather exposure, and expected transaction volume decide which machine fits. For a true TTW setup, that is the Genmega GT3000 or Genmega GT5000. For a compact wall-mounted or protected indoor setup, that is the Genmega Onyx-W.
