Genmega G2500 ATM

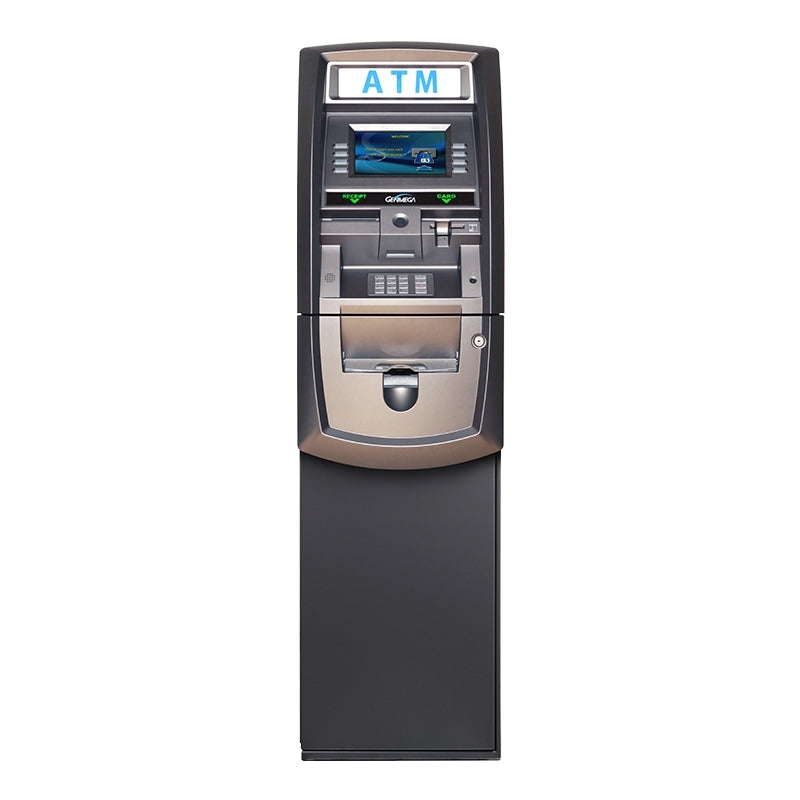

Genmega G2500 High-Capacity Retail ATM
Genmega G2500 is a floor-standing retail ATM built for high-traffic, off-premise placements where uptime and cash capacity matter. Its modular design lets operators choose the right dispenser for expected volume and add upgrades like a larger touchscreen, graphics-capable receipt printing, and topper lighting for better visibility. Best for indoor locations such as convenience stores, grocery stores, casinos, bars, hotels, and event venues. It can also work in covered outdoor or vestibule placements protected from direct weather.
Why Choose the Genmega G2500 ATM?
- High cash capacity for busy locations: Supports a 1,000-note removable cassette or up to 4 x 2,000-note removable cassettes for higher-volume deployments.
- Upgrade-ready customer experience: Start with the standard display and scale up to a larger touchscreen and graphics-capable receipts for branding and offers.
- Better visibility on-site: Integrated illuminated sign plus optional LED topper options help the ATM stand out in crowded retail settings.
- Flexible, modular hardware paths: Multi-configuration dispenser support helps operators standardize deployments and plan upgrades over time.
-
Accessibility and security aligned to real placements: ADA guidance and business-hour vault options support practical retail installs.
Features
- Flexible cash handling: Configure the cash dispenser to match transaction volume, from standard capacity to multi-cassette options for higher throughput.
- On-screen upgrade path: Move from the standard LCD to an optional touchscreen experience for smoother navigation and stronger on-screen messaging.
-
Receipt and branding options: Upgrade the printer for larger, graphics-capable receipts that support coupons, promos, and custom branding.
-
Site visibility support: Use the integrated sign and optional topper options to improve discoverability without changing the footprint.
- Optional EMV and NFC capability: Support common upgrade paths depending on your build and deployment requirements.
Product specification details
|
Specification |
Details |
|
Screen |
8-inch diagonal 32-bit color backlit TFT LCD, 800 x 480; optional 10.2-inch touchscreen; customizable ad screens |
|
Printer |
56mm (2-inch) standard; 80mm (3-inch) optional; 3-inch supports graphics for branding and coupons |
|
PIN Entry Device (EPP) |
16-key alphanumeric keypad; PCI/Interac certified; Triple-DES (TDES) compliant EPP |
|
Card Reader |
DIP-type card reader; EMV optional |
|
Communication |
TCP/IP Ethernet with SSL; 56Kb internal modem (availability depends on configuration) |
|
Controller |
Cortex-A9 dual-core processor; 1GB RAM (DDR3); 512MB NAND Flash; Windows CE 7.0 |
|
Cash Dispenser |
1,000-note removable cassette (SCDU); up to 4 x 2,000-note removable cassettes (HCDU) |
|
Security |
UL291 Business Hours Vault; electronic locks; A-series lock; Kaba Mas Cencon locks |
|
ADA |
Voice guidance; lighted transaction guidance; accessible keypad layout |
|
Dimensions (without packing) |
Height 56.3 in; Width 15.8 in; Depth 22.6 in; Weight (with SCDU) 197.6 lb |
|
Power Requirements |
110/220 VAC ±10%, 50/60 Hz, 145 W |
|
Temperature |
Storage 32°F to 104°F (0°C to 49°C); Operating 45°F to 95°F (5°C to 35°C) |
|
Humidity |
Storage 10% to 90% RH non-condensed; Operating 15% to 85% RH non-condensed |
Download Genmega G2500 Brochure
Looking for more Genmega ATMs? Browse our full Genmega ATM collection here.
Note: Dial-up modem is no longer included with purchase of new ATM
