Genmega Nova ATM

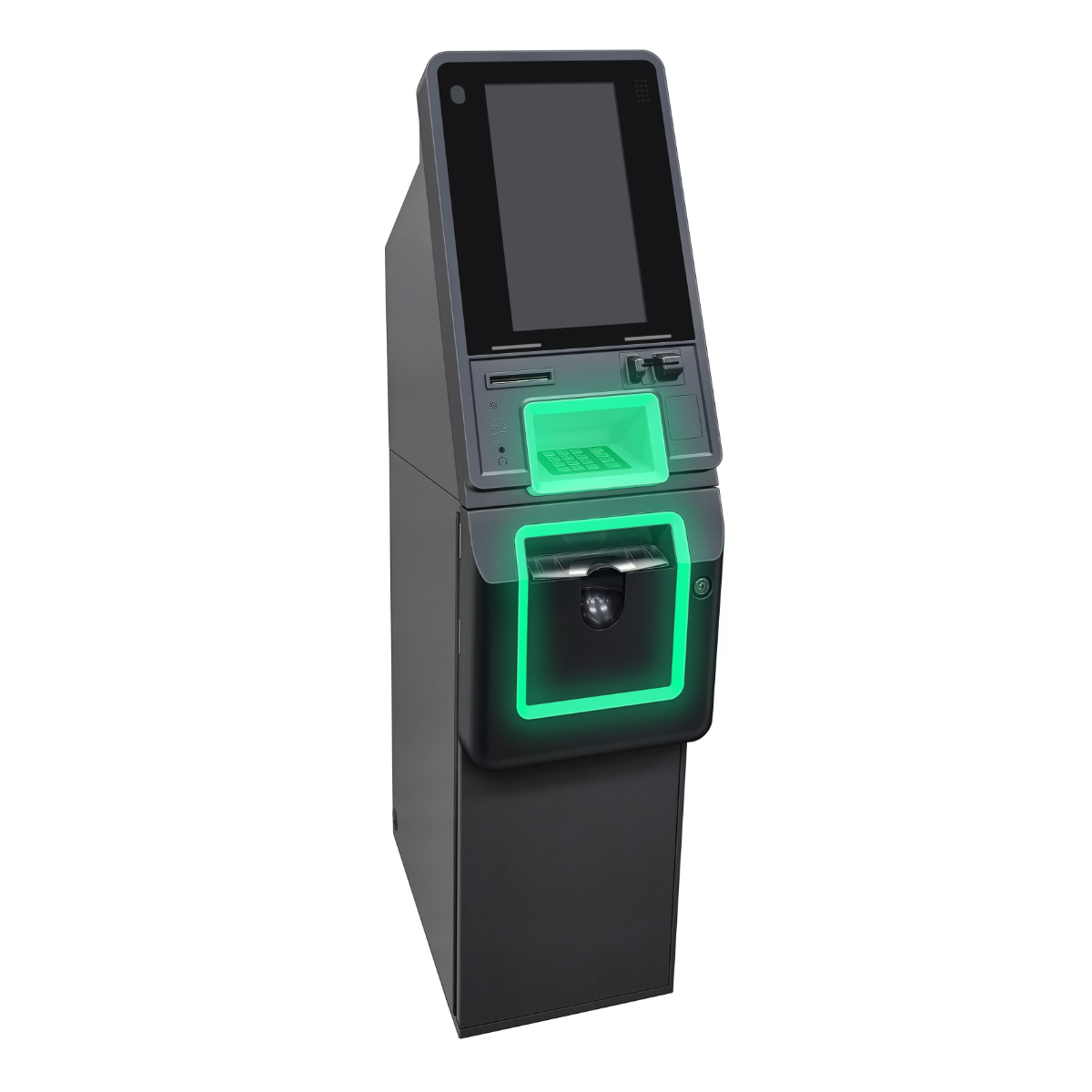

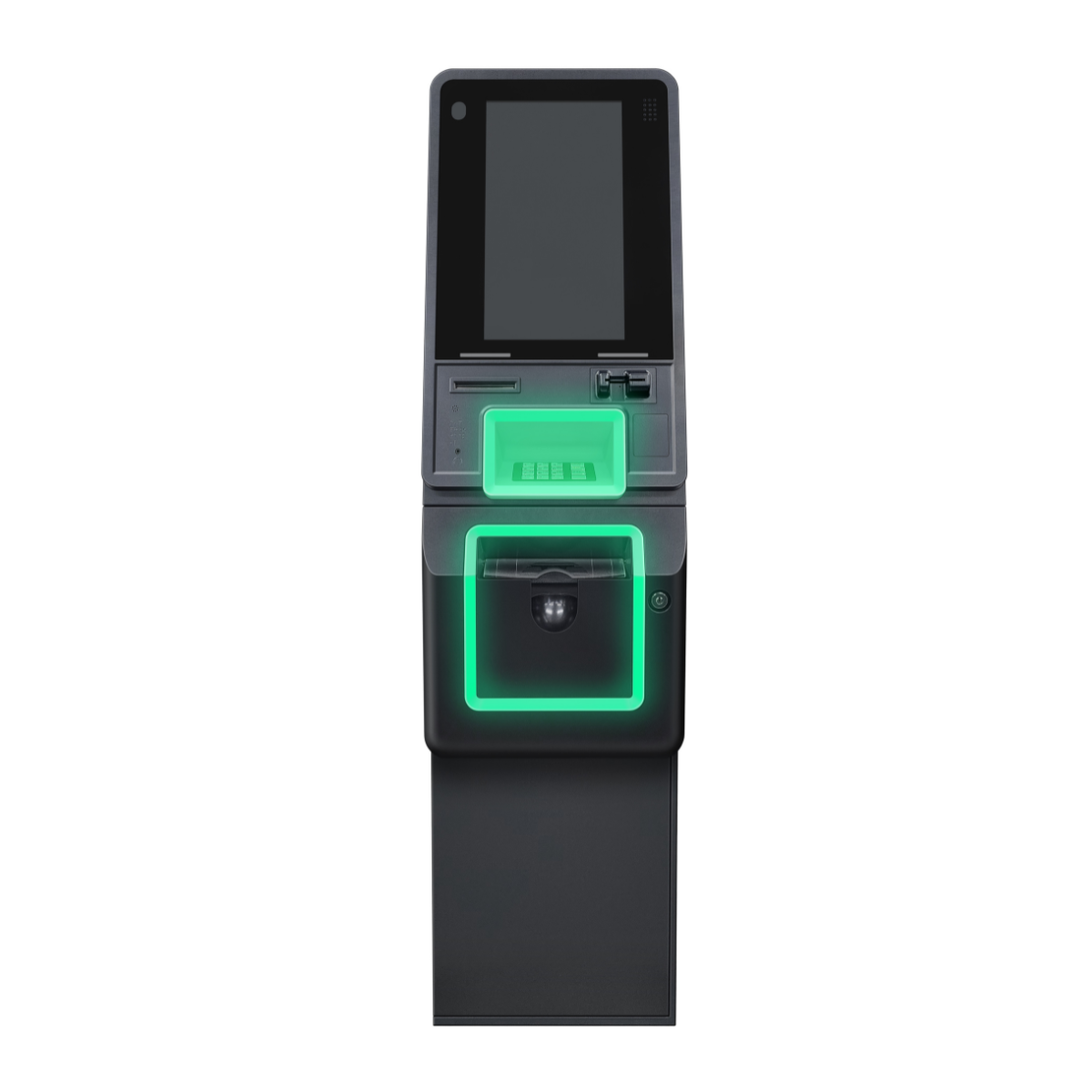

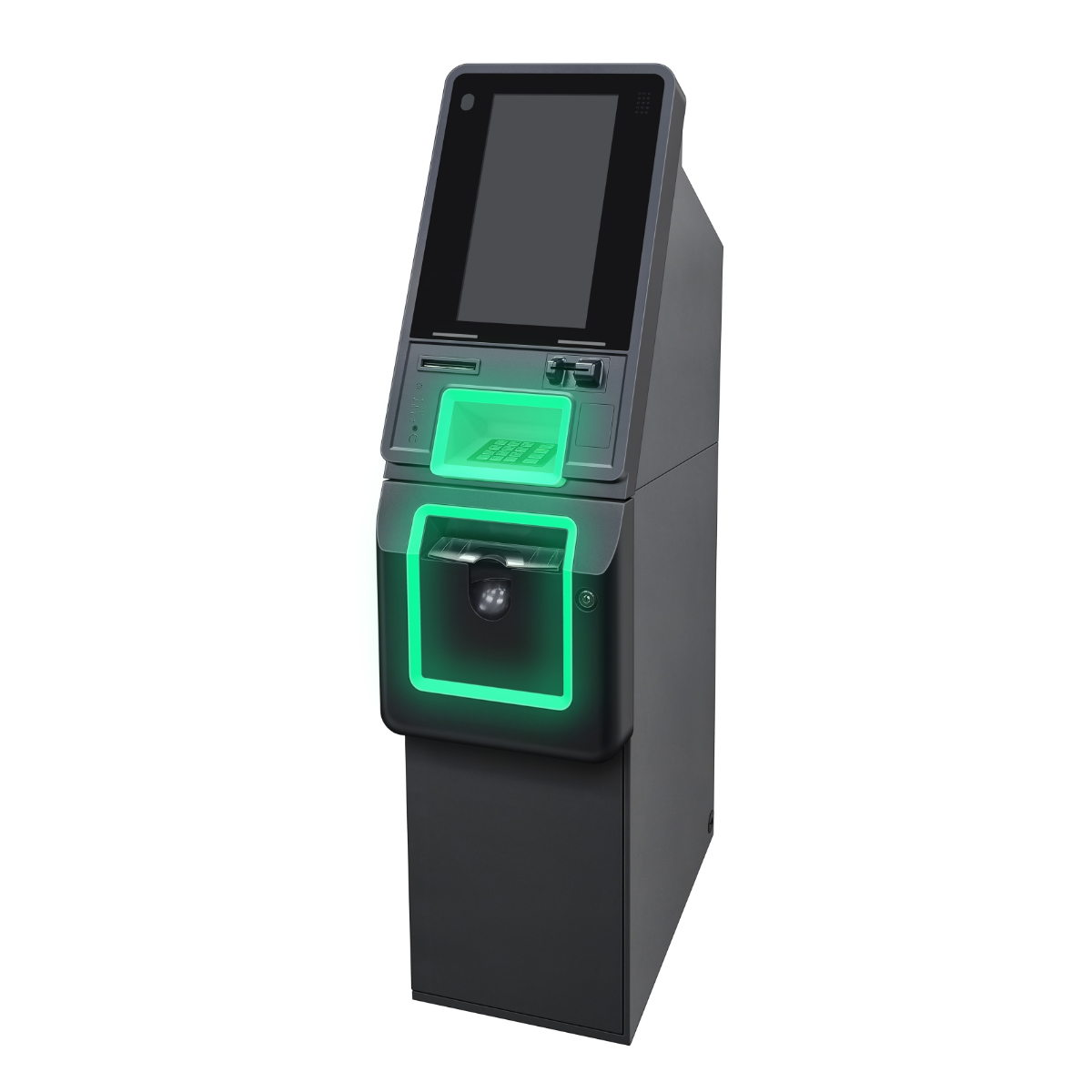

Genmega NOVA Retail ATM
Genmega NOVA is a floor-standing retail ATM designed for off-premise placements that want a premium touchscreen experience and built-in on-screen advertising. The 17-inch full HD display can play full-motion video on the upper portion while transactions run below, removing the need for a separate digital topper. Edge lighting around the dispenser and PIN pad improves visibility. Best for indoor, high-traffic locations like convenience stores, grocery stores, casinos, bars, clubs, and hotel lobbies, plus covered vestibules.
Why choose the Genmega NOVA Retail ATM?
- Split-screen media without extra hardware: Runs full-motion video on the top portion of the 17-inch screen while transactions continue below, so you can promote offers without a digital topper.
- Higher visibility at the terminal: Edge lighting around the cash dispenser and encrypted PIN pad makes the unit easier to spot and easier to use in busy venues.
- Proven Genmega platform: Built with tried and tested Genmega retail ATM components and the same UL291 Business Hours Vault approach used across the line.
- High-capacity cassette options: Supports up to four removable cassettes to reduce reload frequency at higher-transaction locations.
- Future upgrade paths: Designed to support add-ons such as NFC and other future-ready components as your deployment needs change.
Features
- Built-in on-screen promotions: Lets you run video content while the ATM remains fully usable, supporting marketing without adding external signage.
- Large touchscreen experience: The 17-inch display improves readability and on-screen navigation for customers in dim or crowded environments.
- Edge lighting guidance: Lighting around key interaction points helps reduce hesitation and speeds up user flow during peak times.
- Capacity that matches demand: Multi-cassette support helps maintain uptime for locations with frequent withdrawals.
- Upgrade flexibility: Optional add-ons (such as NFC) help you keep the unit aligned with changing customer expectations.
Product specification details
| Specification | Details |
|---|---|
| Monitor | 17-inch touch screen LCD panel; LED backlight; 1920 x 1080 resolution; 1024 x 768 video advertising area |
| Printer | 80mm thermal receipt printer; 40 characters per line; 200 DPI mono-graphic printing |
| PIN Entry Device (EPP) | 16-key alphanumeric keypad; PCI certified; Triple-DES (TDES) compliant |
| Cash Dispenser | Up to 4 x 2,000-note removable cassettes |
| Card Reader | EMV (dip type) |
| ADA | Voice guidance; lighted transaction guidance; accessible keypad layout |
| Security | UL291 Business Hours Vault; electronic lock; Kaba Mas Cencon Series lock; optional Level 1 vault |
| Communication | TCP/IP Ethernet connection (onboard SSL) |
| Dimensions (without packing) | Height 60.4 in; Width 15.8 in; Depth 22.3 in; Weight with SCDU 220.2 lb |
| Dimensions (with packing) | Height 73.1 in; Width 18.7 in; Depth 26.7 in; Weight with SCDU 245.2 lb |
| Power Requirements | 110/220 VAC ±10%, 50/60 Hz, 145 W |
| Temperature Requirements | Storage 32°F to 104°F (0°C to 49°C); Operating 45°F to 95°F (5°C to 35°C) |
| Allowable Humidity | Storage 10% < RH < 90% non-condensed; Operating 15% < RH < 85% non-condensed |
| Illuminated Features | Edge lighting around the cash dispensing unit (CDU) and encrypted PIN pad (EPP) |
Download Genmega NOVA brochure
More options: Browse the Genmega ATM collection
Dial-up modem note: Dial-up modem is not included with purchase of a new ATM. If you have legacy dial-up requirements, confirm connectivity options before ordering.
