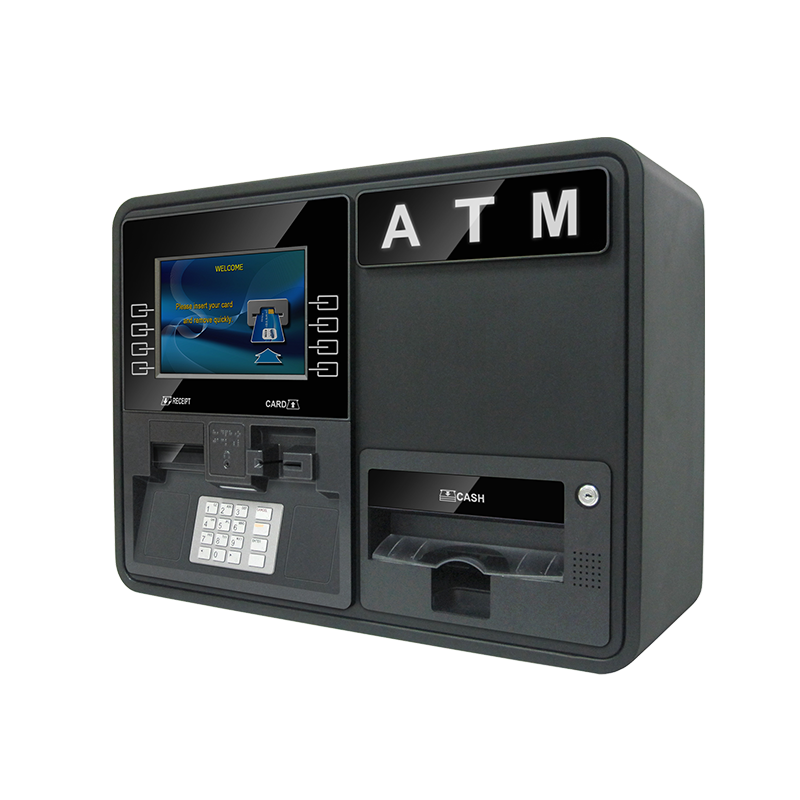

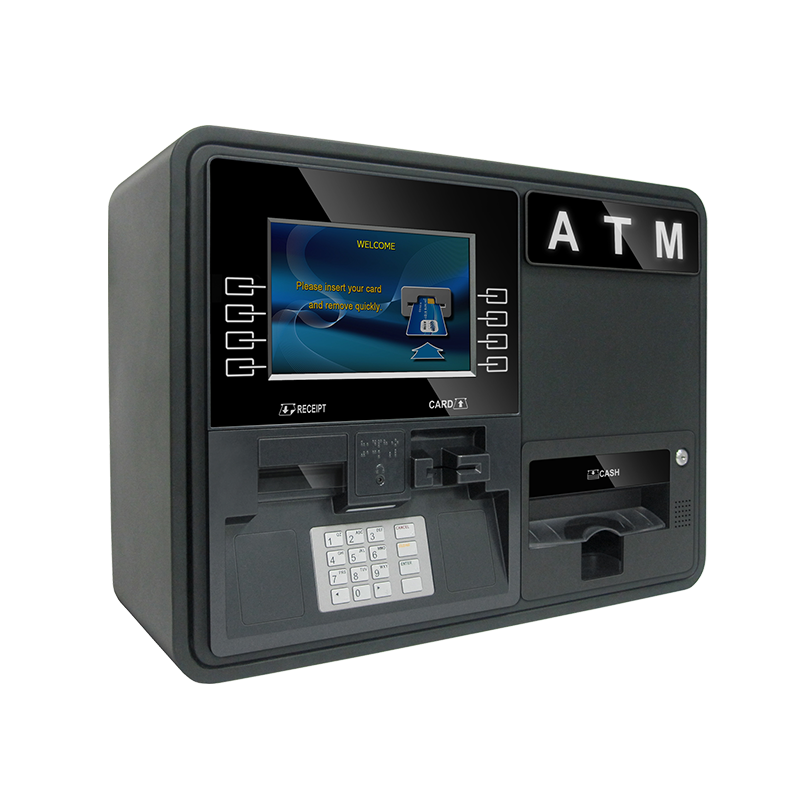

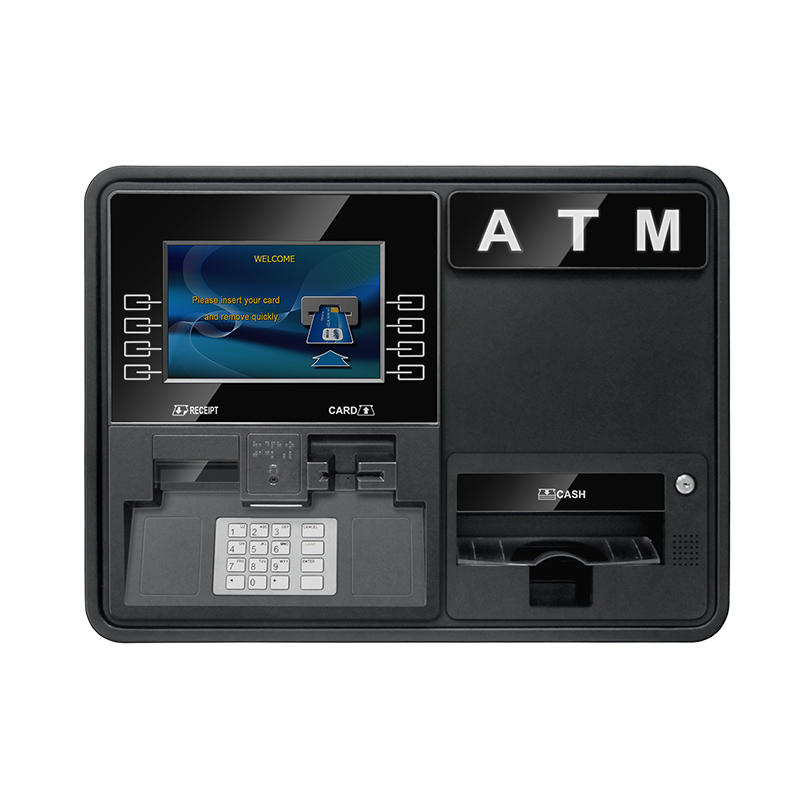

Genmega Onyx-W Wall-Mounted ATM
Genmega Onyx-W Wall ATM
Genmega Onyx-W is a wall-mounted retail ATM that can also sit on a countertop when floor space is limited. It delivers standard ATM cash withdrawal transactions in a compact footprint with a 10.1-inch wide display, illuminated function keys, and a 2-inch thermal receipt printer. The unit uses a locked internal vault with a removable 1,000-note cassette, making it suitable for indoor locations like convenience stores, bars, clubs, small retail shops, and service counters, plus protected vestibule installs.
Why choose the Genmega Onyx-W Wall ATM?
- Saves floor space immediately: Wall-mount or countertop placement keeps ATM access available without a full floor-standing cabinet.
- Compact vault-based cash storage: Locked internal vault with a removable 1,000-note cassette supports secure daily operation in smaller venues.

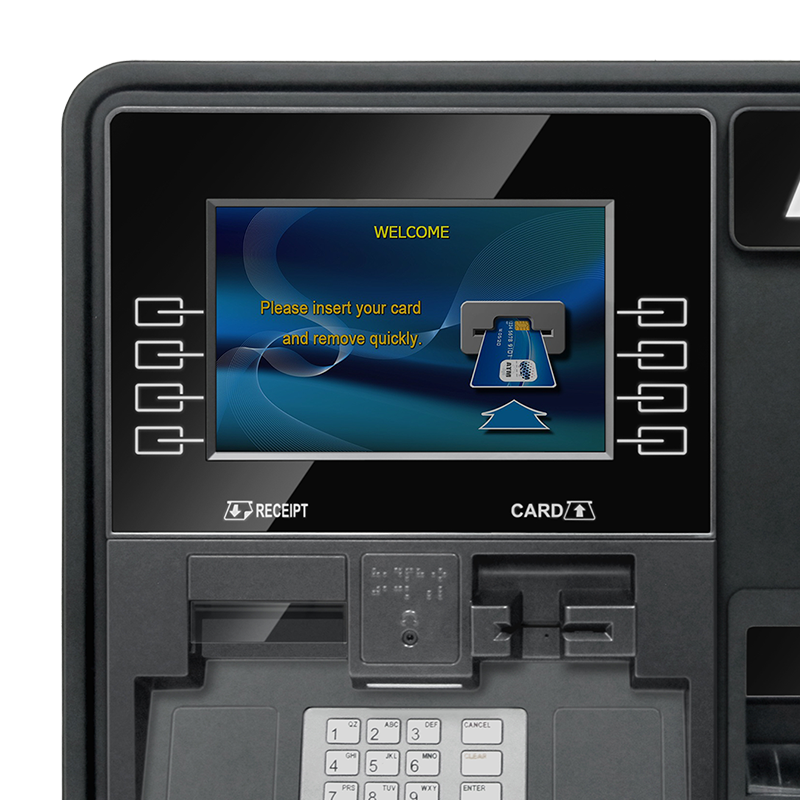

- Clear user interface in tight installs: 10.1-inch wide screen and illuminated function keys guide transactions where space and lighting are limited.
- Flexible security configurations: Electronic lock standard with optional A-series and Cencon lock options based on your site requirements.
- Straightforward connectivity options: SSL-enabled Ethernet standard with optional 56K modem support depending on configuration.
Features
- Wall or countertop flexibility: Lets operators place the ATM where customers naturally queue, without sacrificing walkways.
- Guided customer interaction: Illuminated keys and lighted indicators help customers complete transactions faster in busy counters.
- Compact, modern exterior: The Onyx-W looks clean in small retail spaces where bulky cabinets feel out of place.
- Secure cash handling in a small build: Vault-protected cassette design supports reliable daily use without a large footprint.
- Optional signage visibility: Topper and signage options help customers notice the terminal even when mounted off the floor.
Product specification details
| Specification | Details |
|---|---|
| Installation | Wall-mount or countertop |
| Display | 10.1-inch wide TFT LCD; 1280 x 800 resolution |
| Printer | 56mm (2-inch) thermal receipt printer |
| PIN Entry Device (EPP) | Alphanumeric keys; PCI 3.0 certified; encrypted PIN pad |
| Cash Dispenser | 1,000-note removable cassette; WCDU vault |
| Card Reader | DIP-style; EMV ready |
| Controller | Cortex-A8 800MHz; 256MB RAM; 512MB Flash |
| Operating System | Windows CE 6.0 |
| Communication | Ethernet (SSL onboard); optional 56K modem (sold separately) |
| Security lock | Electronic lock standard; optional A-series lock; optional Cencon lock |
| ADA | Voice guidance; tactile keypad; lighted transaction indicators |
Download Genmega Onyx-W Brochure
More options: Browse the Genmega ATM collection.
Note: 2K Onyx-W dimensions are different.
Dial-up modem note: Dial-up modem is no longer included with purchase of a new ATM. If needed, order modem part number TX40PCB25778.
