ATM Card Reader Not Reading Cards

A card reader that stops reading is the most common ATM component failure. Before you order a replacement module, run this checklist. Most failures are a cleaning issue, not a hardware failure.

START HERE

What are the most common reasons an ATM card reader stops working?

Most ATM card reader failures fall into four categories. Only one of them requires replacing the module.

Before assuming hardware failure, run through the cleaning and inspection steps below. In most cases, a card reader that suddenly stops reading has a dirty head, not a dead one.

How do I know if the problem is a cleaning issue or a hardware failure?

The fastest diagnostic is a cleaning card test:

1. Run a card reader cleaning card through the slot 2 to 3 times.
2. Test with 3 to 4 different bank cards from different issuers.
3. If reads improve or succeed after cleaning, the issue was contamination.
4. If reads still fail across all cards after 3 cleaning passes, the head is worn or the module has a hardware fault.

Cleaning cards are a low-cost consumable. A replacement card reader module is a significant parts investment. Run the cleaning test first every time. Contact ATMTrader for current pricing on modules and cleaning supplies.

CLEANING PROCEDURE

What is a card reader cleaning card and how do I use it?

A card reader cleaning card is a pre-saturated card the same size as a credit card, coated with isopropyl alcohol or a purpose-formulated magnetic head cleaner. Swiping it through the card slot wipes the magnetic read head and transport rollers without requiring disassembly.

How to use it correctly:

1. Purchase an ISO-standard pre-saturated cleaning card. Dry cards do not clean effectively.
2. With the ATM powered on and in supervisor mode, insert the cleaning card into the card slot.
3. Allow it to pass through fully at normal card-read speed. Do not force or slow it.
4. Repeat 2 to 3 times. For heavy contamination, 4 to 5 passes.
5. Wait 60 seconds for residual moisture to evaporate before running a live transaction test.

6. Test with 2 to 3 real cards to confirm reads are successful.

How often should I clean my ATM card reader?

High-traffic sites in dusty environments (gas stations, convenience stores, outdoor kiosks) should clean more frequently than the table suggests. Dust is the primary cause of accelerated head wear.

Stock card reader cleaning cards on-site so the clean can be run immediately when a read failure occurs, without waiting for a parts order.

Can I use a liquid card reader cleaner instead of a cleaning card?

Yes, but only with the correct application method. A liquid card reader cleaner should be applied to a lint-free foam swab, not poured or sprayed directly into the slot. Browse ATM parts and cleaning supplies for compatible options.

Cleaning cards are the preferred method for routine maintenance because they clean the head and the transport rollers simultaneously and require no disassembly. Liquid cleaner with a swab is the fallback when a cleaning card is not available or for targeted cleaning after a card jam leaves debris on the head.

Never use rubbing alcohol from a pharmacy directly. Consumer isopropyl alcohol concentration varies and may contain additives. Use purpose-formulated ATM card reader cleaning solution to avoid residue buildup on the read head.

PHYSICAL INSPECTION

What should I look for when inspecting an ATM card slot?

Before assuming a head or motor fault, inspect the slot opening visually and physically. Power down the ATM before any physical inspection.

• Foreign objects: coins, paper fragments, and card fragments jam the transport. A flashlight and a non-metal pick can clear debris without damaging the head.
• Bent or misaligned entry guides: the metal guides at the slot entrance can deform after repeated insertions. A bent guide causes cards to enter at an angle, causing misread or jam.
• Skimming devices: a skimmer overlay sits over the card slot and is detectable by feel (it will wiggle slightly) or by comparing the slot appearance to an identical machine.
• Worn entry rollers: visible as flat spots or glazing on the rubber rollers at the slot entrance. Worn rollers cause cards to stall before reaching the read head.

A card got stuck inside the ATM card reader. How do I remove it safely?

Do not use metal tools, tweezers, or screwdrivers to extract a jammed card. Direct contact with the read head surface causes irreversible scratch damage that cleaning cannot fix.

1. Power down the ATM at the main switch.
2. On most retail ATM models, the card reader module has 2 to 4 bezel screws. Remove them and slide the module forward 1 to 2 inches.
3. Locate the card transport roller visible on the module body. Manually rotate it to advance the card toward the exit position.
4. Remove the card completely. Inspect it for tears. Remove any paper fragments left inside.
5. Reseat the module, reassemble the bezel, power on, and run a diagnostic self-test.
6. Test with 2 real cards before returning the machine to service.

SPECIFIC FAILURE SCENARIOS

My ATM reads some cards but not others. What causes this?

Selective read failures point to head sensitivity loss rather than complete head failure. Common causes:

My ATM card reader worked fine yesterday and stopped completely today. What happened?

A sudden complete failure (not gradual degradation) is usually one of three things:

• A card jam left debris or a card fragment partially blocking the transport path. Inspect the slot physically before running diagnostics.
• The card reader cable to the main board was disturbed during a recent service or cassette reload. Power down, reseat the ribbon cable, power on.
• A hardware component (motor, sensor, or read head) failed at end of service life. If cleaning and cable reseat do not resolve it, the module needs replacement.

NFC CARD READERS

What is an NFC card reader on an ATM and do I need one?

An NFC card reader (near-field communication) enables contactless card and mobile wallet transactions at the ATM. Tap-to-pay cards and Apple Pay or Google Pay on a phone use NFC to initiate the transaction without inserting a card.

If your current card reader does not support NFC and customers are tapping cards that are not reading, this is not a failure. It is a feature gap. The card is functioning correctly. Your reader does not have the antenna and protocol support to receive the NFC signal.

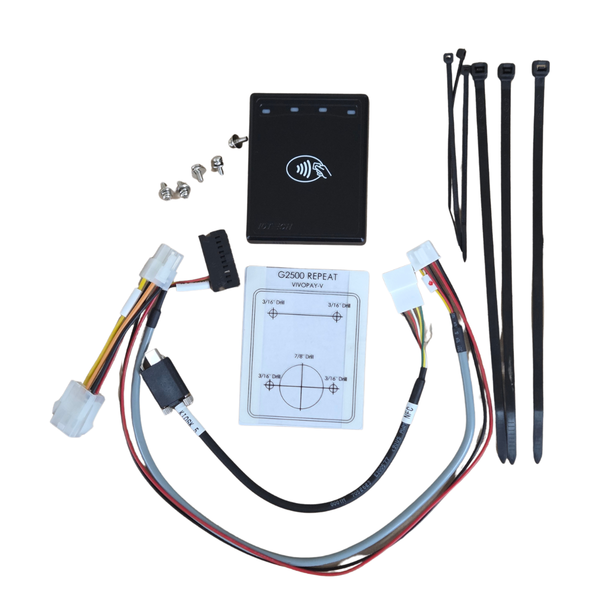

If you are replacing a failed card reader module anyway, upgrading to an NFC card reader at the same time adds contactless capability without a second service call. Check compatibility with your ATM model before ordering.

Will an NFC card reader replacement fix my existing card read failures?

Only if the existing failures are caused by the module hardware. An NFC upgrade replaces the entire card reader module, so it resolves any head wear, motor, or transport issues simultaneously. However, if the failure is caused by a cable fault or software configuration, replacing the module will not fix it.

Run the cleaning and cable checks before ordering any replacement. If those do not resolve the issue, an NFC module replacement is the right next step if your ATM model supports one.

How do I know when to stop trying to fix an ATM card reader and replace it?

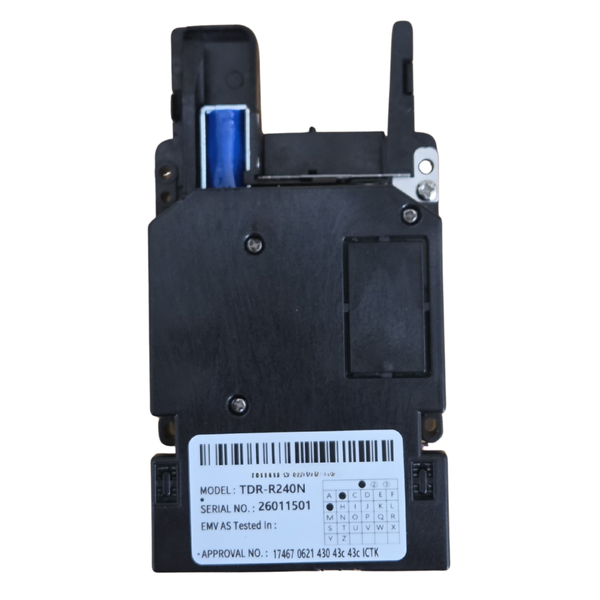

What ATM card reader replacement options are available and how do I choose?

When replacing the module, your options are: a standard magnetic and chip reader, or an NFC card reader with contactless support. The NFC version adds tap-to-pay capability with no additional service call required at time of swap. Confirm the module is compatible with your specific ATM model before ordering.

Browse compatible ATM card readers by model. If you are unsure which module fits your machine, the repair center can confirm compatibility before you order.
